5  Diagnosing data visually

Author

University of Nebraska at Kearney Biology

5.1 The importance of visual inspection

Inspecting data visually can give us a lot of information about whether data are normally distributed and about whether there are any major errors or issues with our dataset. It can also help us determine if data meet model assumptions, or if we need to use different tests more appropriate for our datasets.


5.2 Sample data and preparation

Before we start, we must load our R libraries.

library(tidyverse)

We will need one additional R library this week as well - moments. You will need to install this library on your machine if you have not done so already.

library(moments)


5.3 Histograms

A histogram is a frequency diagram that we can use to visually diagnose data and their distributions. We are going to examine a histogram using a random string of data. R can generate random (though, actually pseudorandom) strings of data on command, pulling them from different distributions. These distributions are pseudorandom because we can’t actually program R to be random, so it starts from a wide variety of pseudorandom points.


5.3.1 Histograms on numeric vectors

Click to see how to make a default histogram

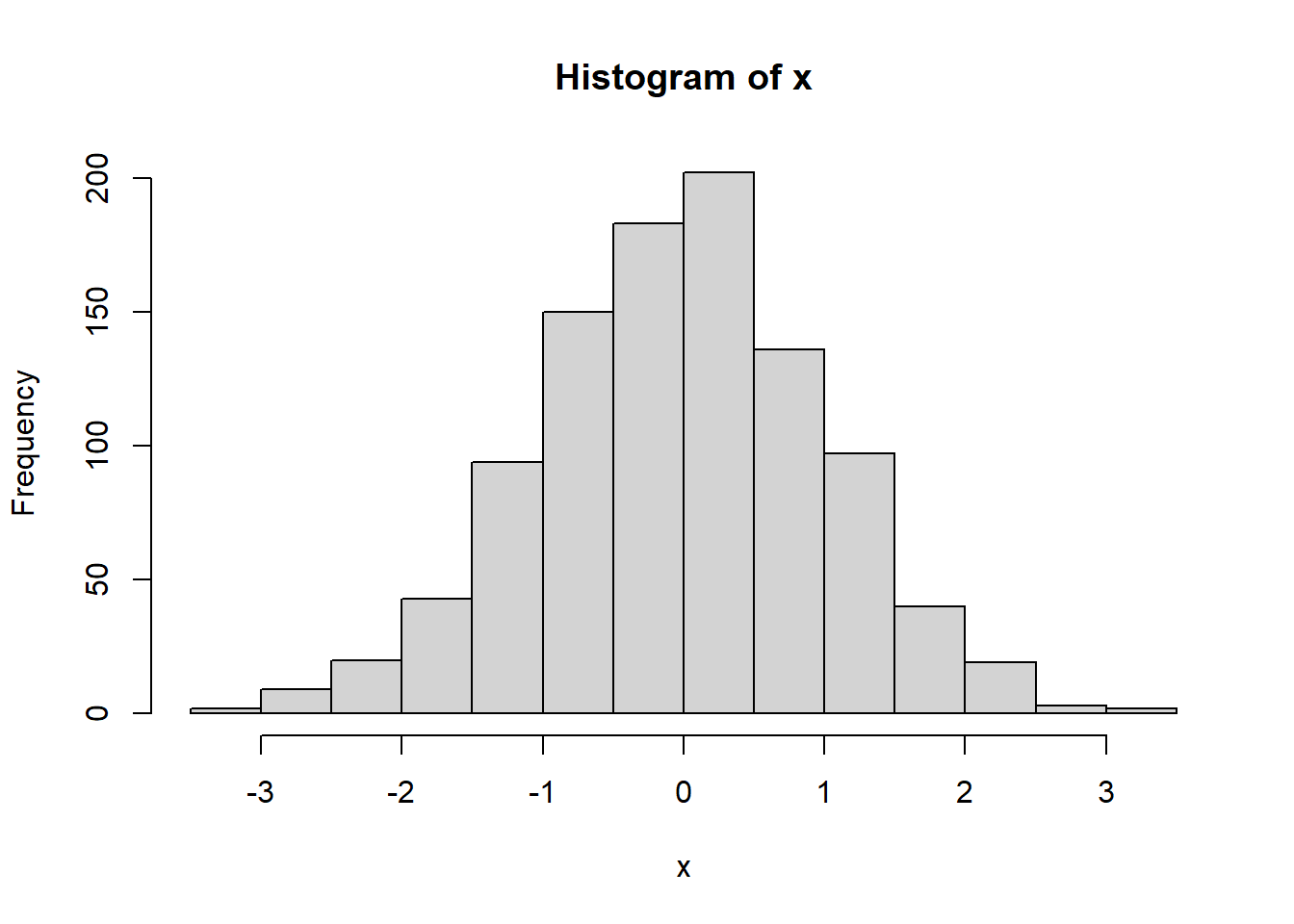

The following is how to create default histograms on data. If you need to create custom bin sizes, please see the notes under Cumulative frequency plot for data that are not already in frequency format.

# create random string from normal distribution
# this step is not necessary for data analysis in homework
set.seed(8675309)

x <- rnorm(n = 1000, # 1000 values
           mean = 0,
           sd = 1)

# make histogram
hist(x)

NOTE that a histogram can only be made on a vector of values. If you try to make a histogram on a data frame, you will get an error and it will not work. You have to specify which column you wish to use with the $ operator. (For example, for dataframe xy with columns x and y, you would use hist(xy$y)).

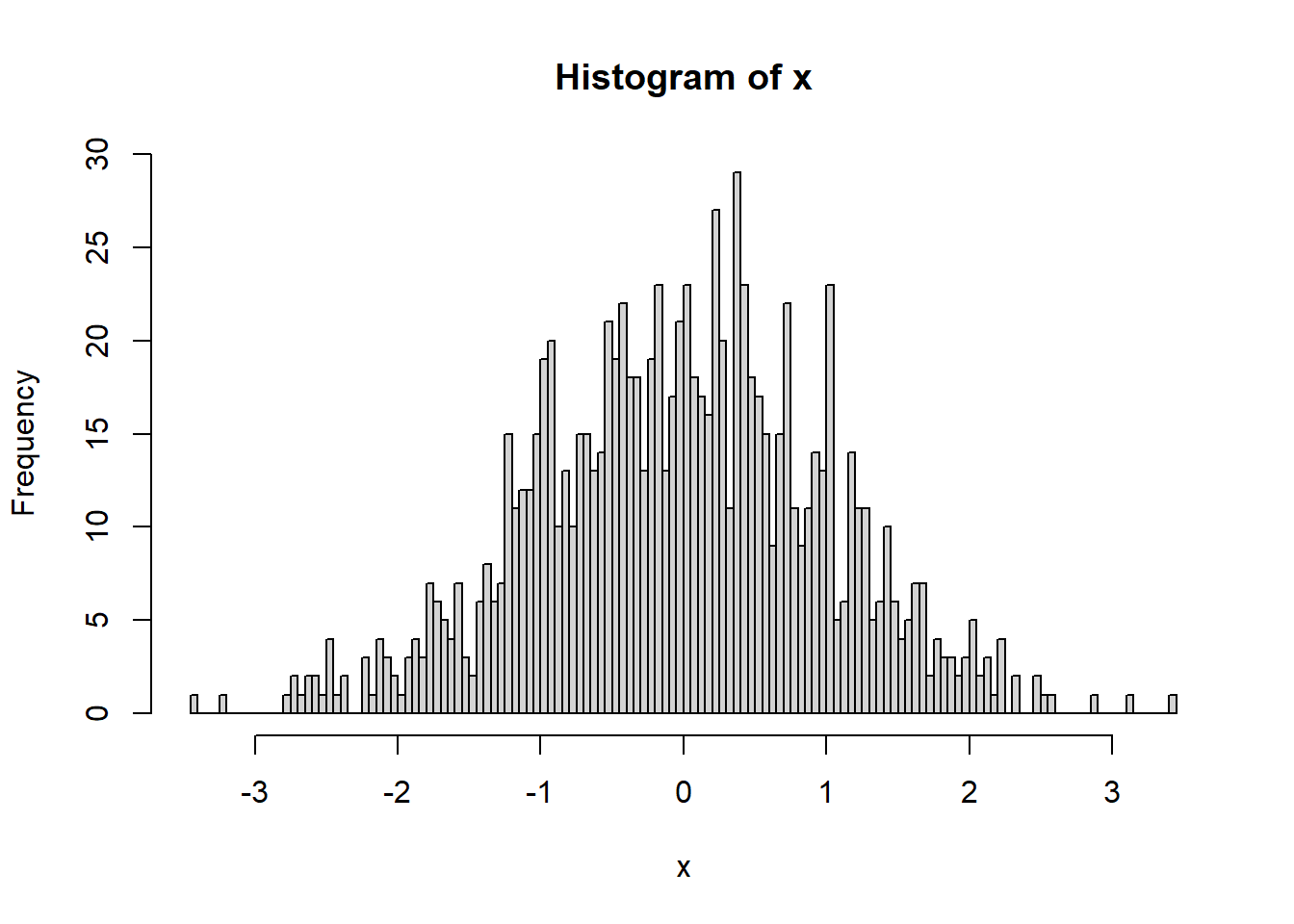

We can increase the number of bins to see this better.

hist(x,breaks = 100)

The number of bins can be somewhat arbitrary, but a value should be chosen based off of what illustrates the data well. R will auto-select a number of bins in some cases, but you can also select a number of bins. Some assignments will ask you to choose a specific number of bins as well.


5.3.2 Histograms on frequency counts

Click to see how to make a histogram with frequency data

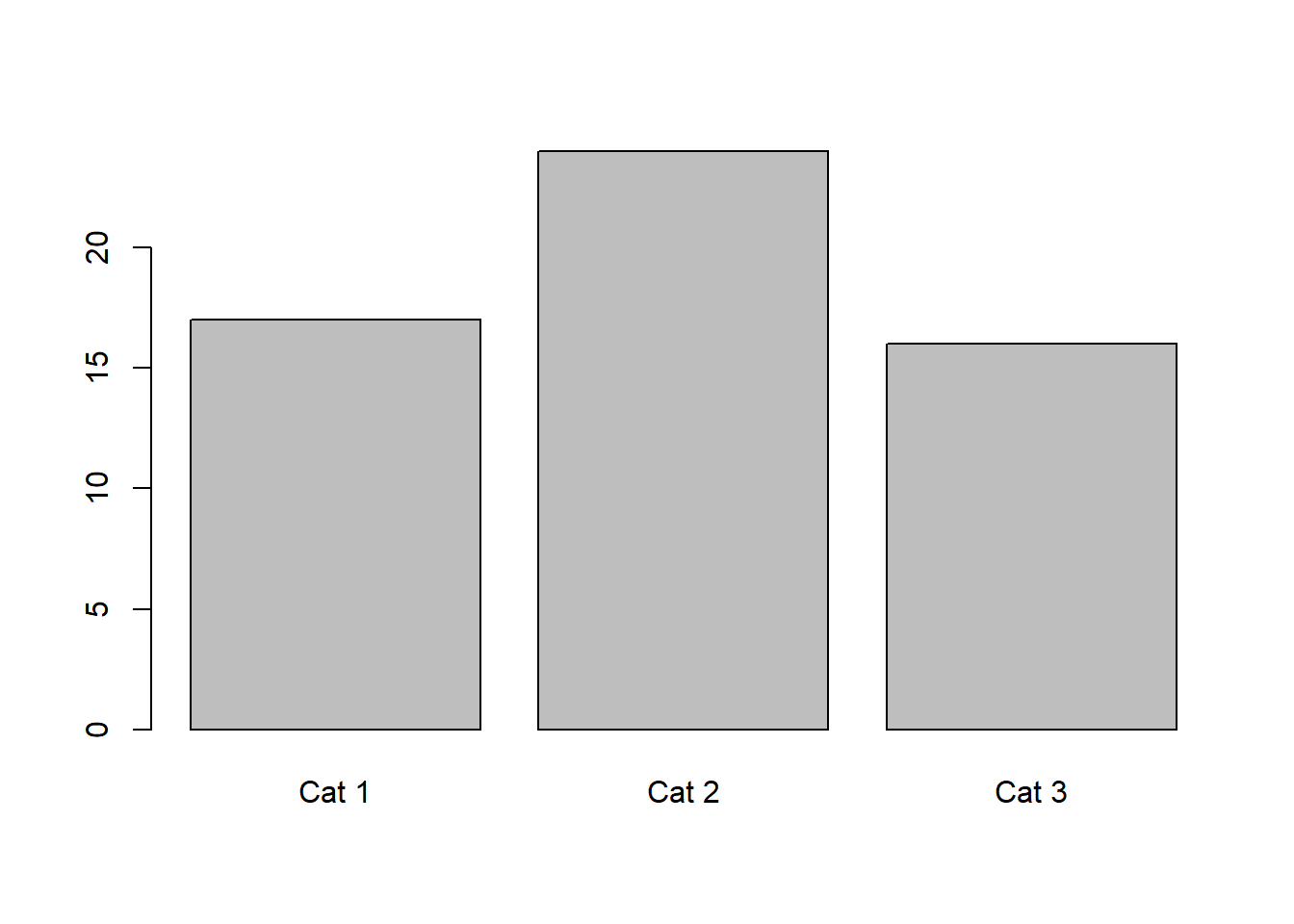

Say, for example, that we have a dataset where everything is already shown as frequencies. We can create a frequency histogram using barplot.

count_table <- matrix(nrow = 4, ncol = 2, byrow = T,
                      data = c("Cat 1", 4,
                               "Cat 2", 8,
                               "Cat 3", 7,
                               "Cat 4", 3)) |>
  as.data.frame()

colnames(count_table) <- c("Category","Count")

# ensure counts are numeric data
count_table$Count <- as.numeric(count_table$Count)

# manually create histogram

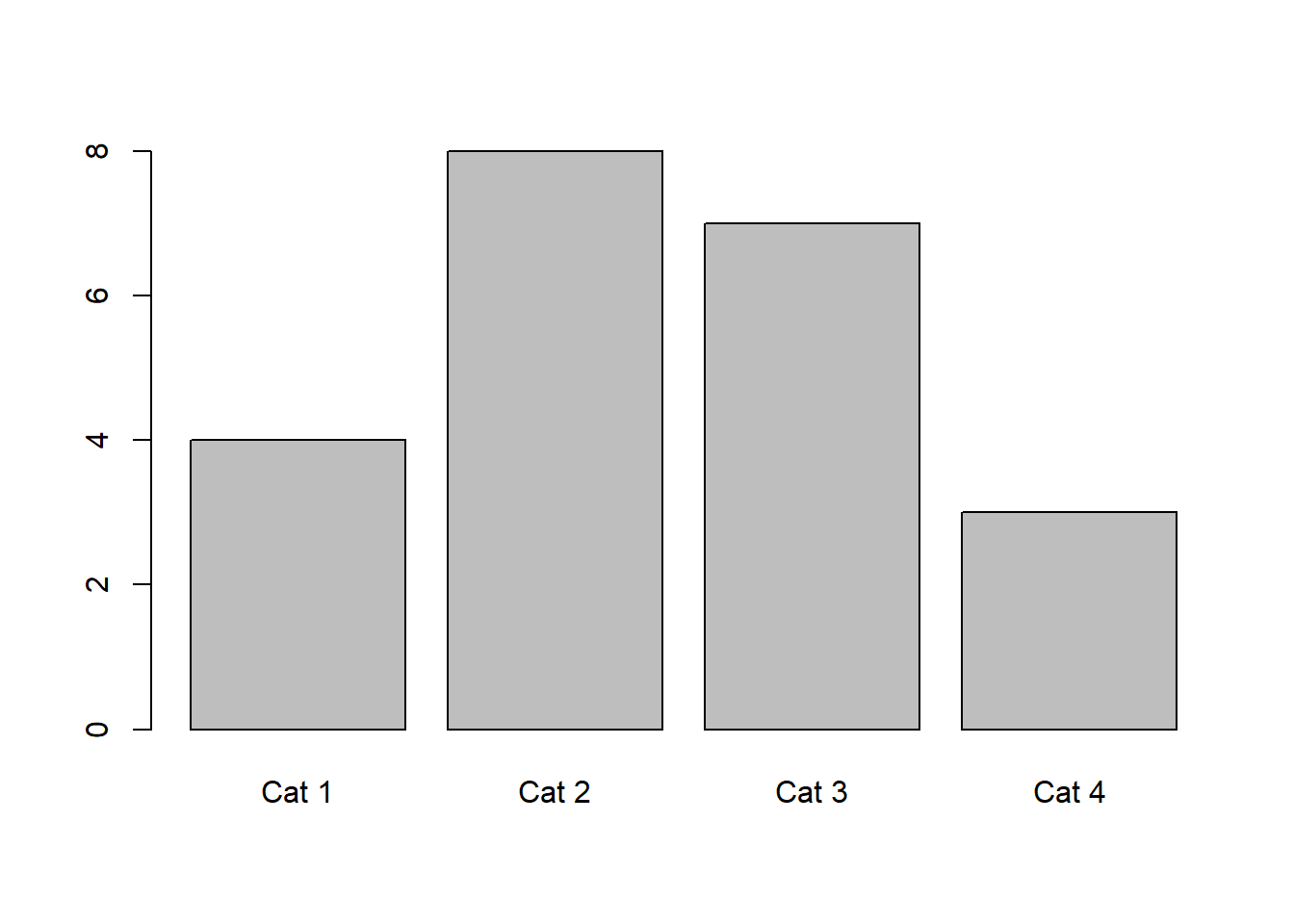

barplot(count_table$Count, # response variable, counts for histogram
        axisnames = T, # make names on plot
        names.arg = count_table$Category) # make these the names


5.3.3 ggplot histograms

Click to see how to make fancy histograms (optional)

The following is an optional workthrough on how to make really fancy plots.

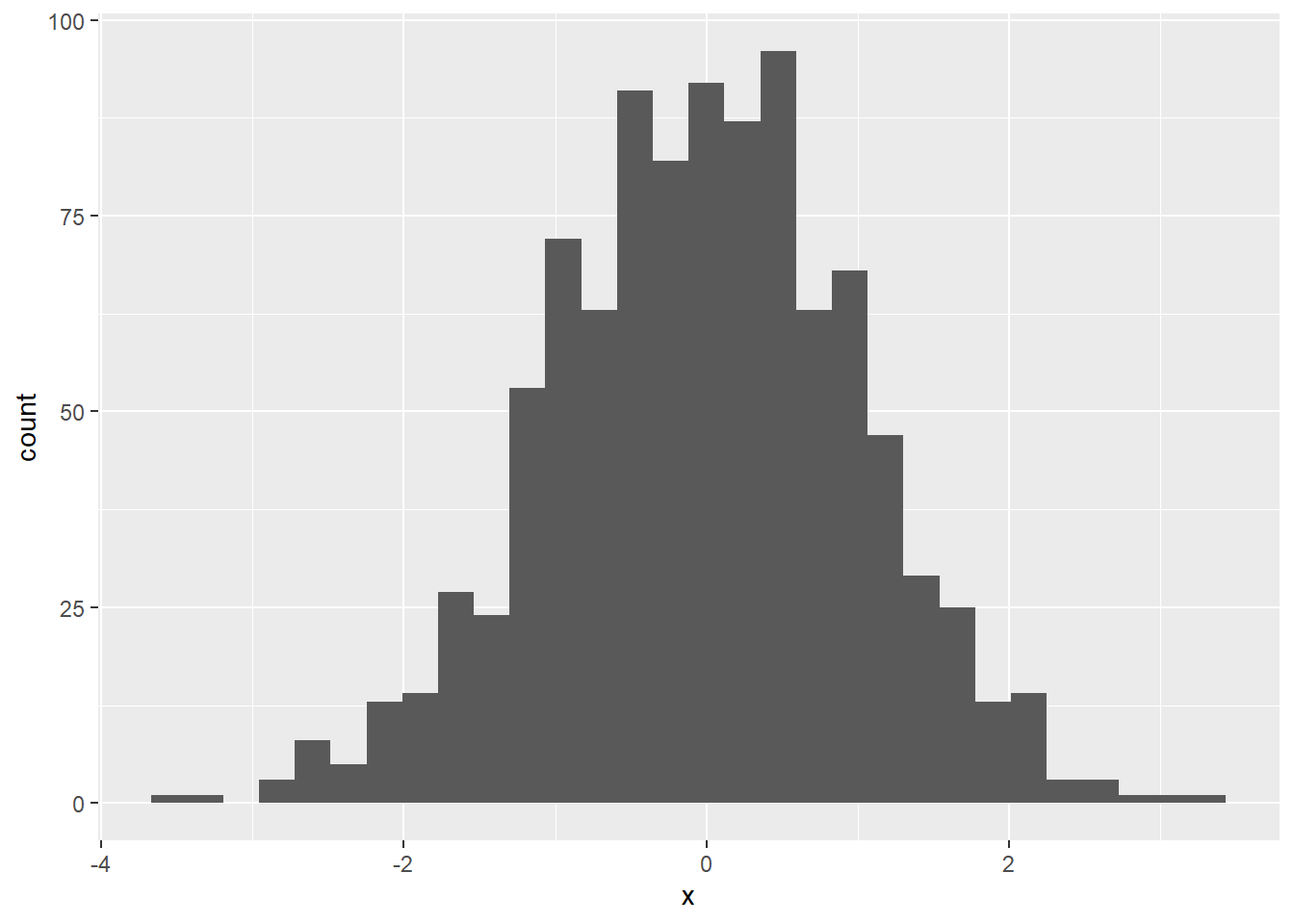

We can also use the program ggplot, part of the tidyverse, to create histograms.

# ggplot requires data frames
x2 <- x |> as.data.frame()
colnames(x2) <- "x"

ggplot(data = x2, aes(x = x)) +
  geom_histogram()
`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

ggplot is nice because we can also clean up this graph a little.

ggplot(x2,aes(x=x)) + geom_histogram() +
  theme_minimal()
`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

We can also do a histogram of multiple values at once in R.

x2$cat <- "x"

y <- rnorm(n = 1000,
           mean = 1,
           sd = 1) |>
  as.data.frame()

colnames(y) <- "x"
y$cat <- "y"

xy <- rbind(x2,y)

head(xy)
           x cat
1 -0.9965824   x
2  0.7218241   x
3 -0.6172088   x
4  2.0293916   x
5  1.0654161   x
6  0.9872197   x

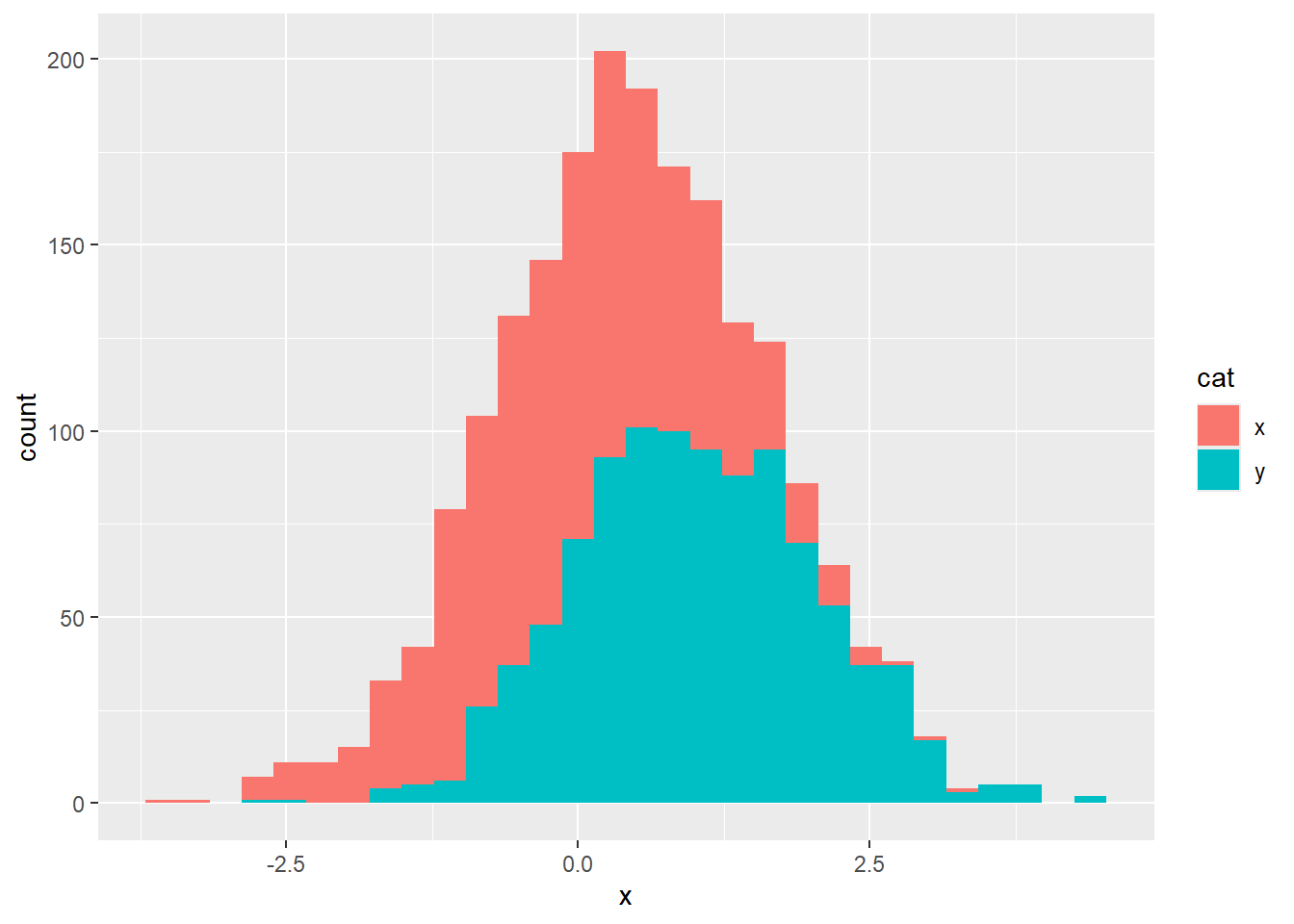

ggplot(xy,aes(x = x, fill = cat)) +
  geom_histogram()
`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

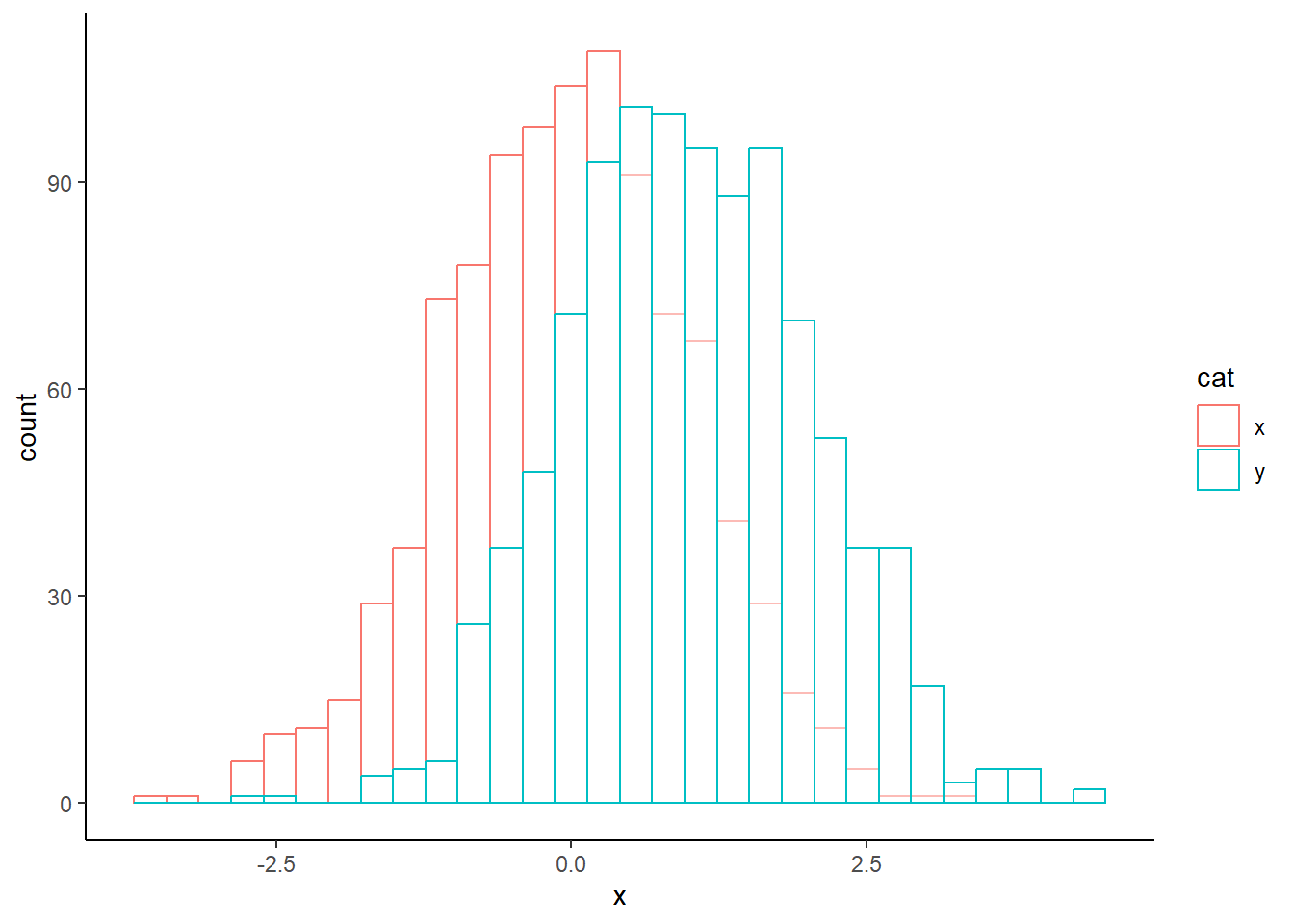

We can also make this look a little nicer.

ggplot(xy, aes(x = x, colour = cat)) +
  geom_histogram(fill = "white", alpha = 0.5, # transparency
                 position = "identity") +
  theme_classic()
`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

We can show these a little differently as well.

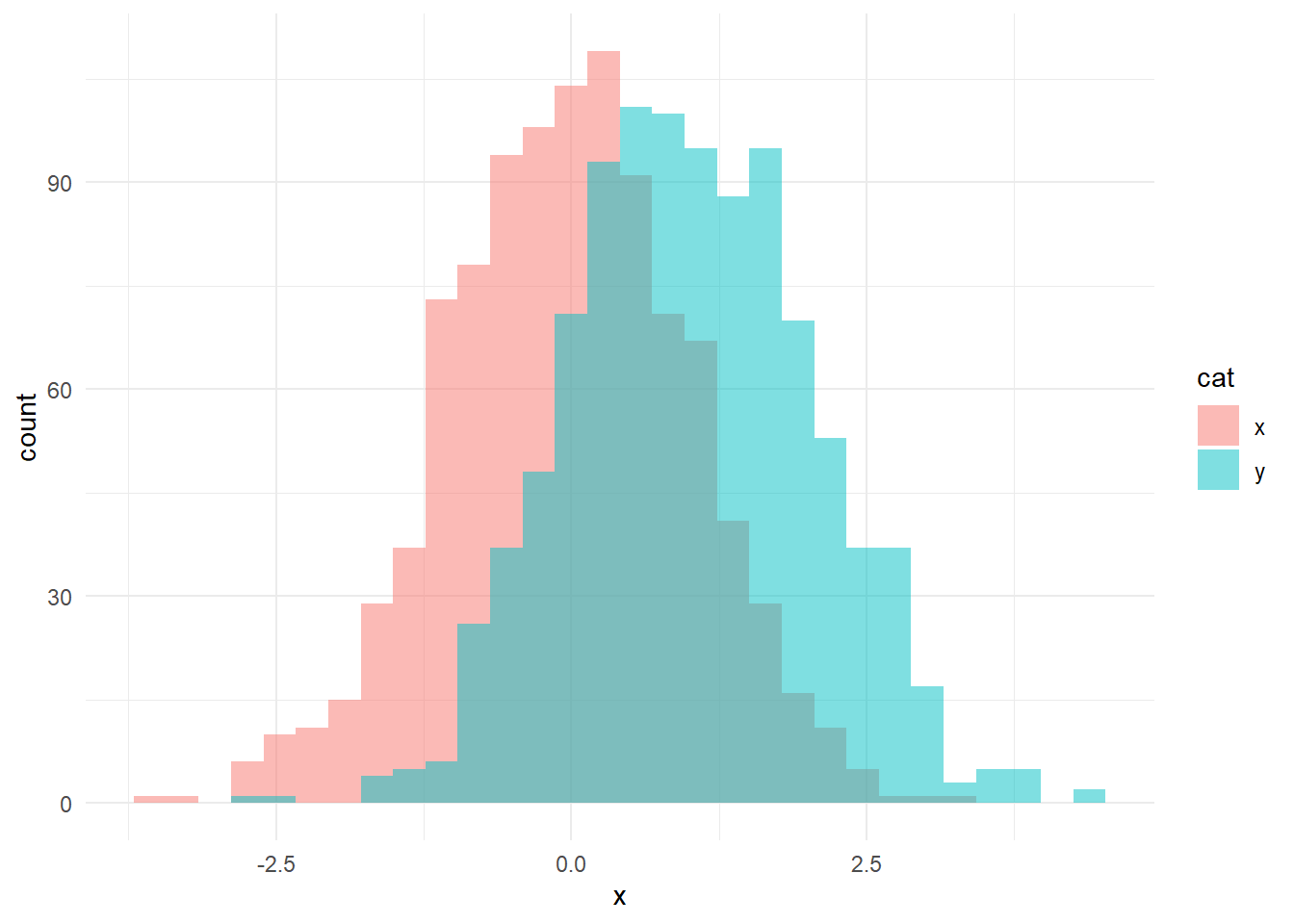

ggplot(xy, aes(x = x, fill = cat))+
  geom_histogram(position = "identity", alpha = 0.5) +
  theme_minimal()
`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

There are lots of other commands you can incorporate as well if you so choose; I recommend checking sites like this one or using ChatGPT.


5.4 Boxplots

Click to see how to make boxplots

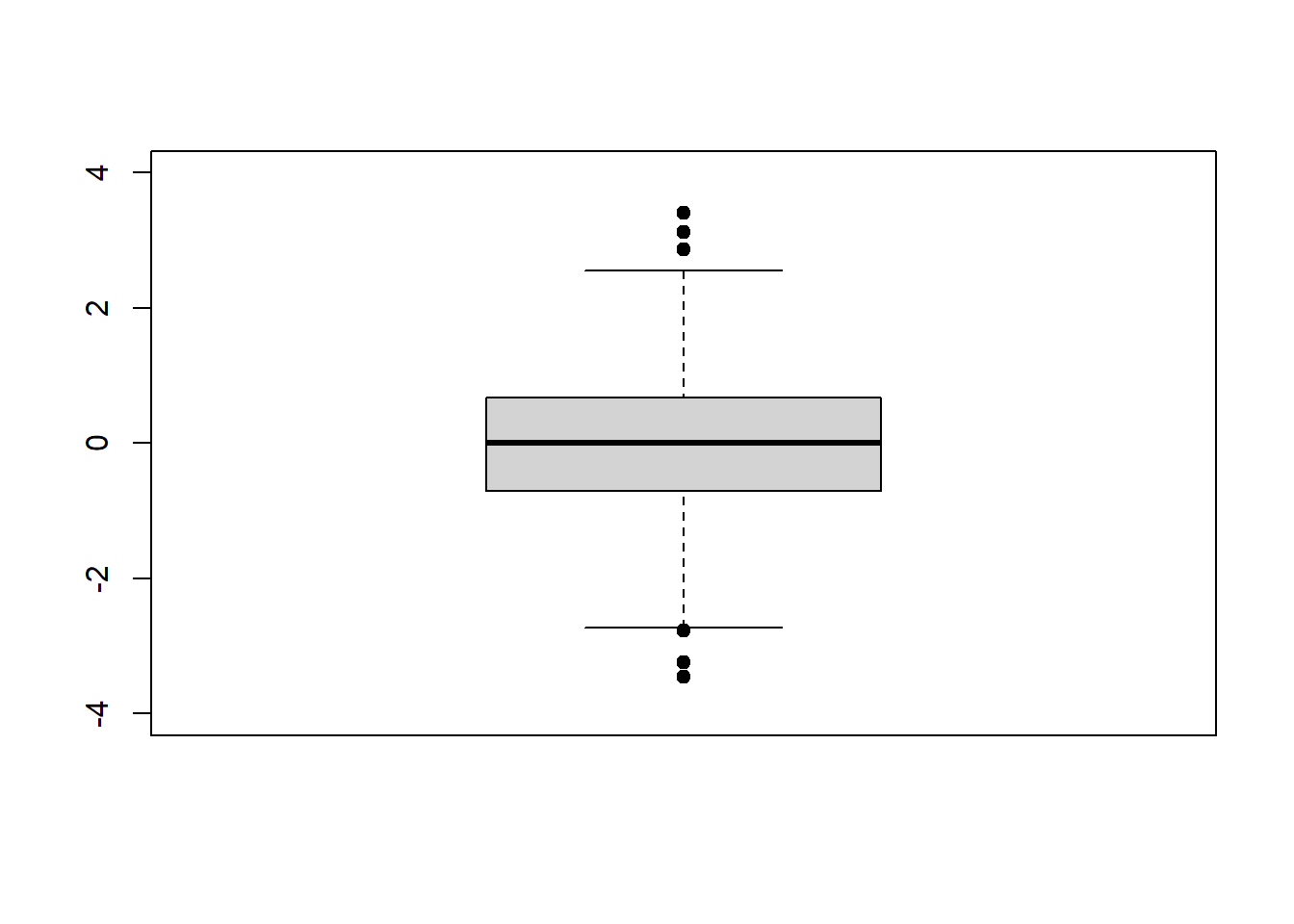

We can also create boxplots to visualize the spread of the data. Boxplots include a bar for the median, a box representing the interquartile range between the 25th and 75th percentiles, and whiskers that extend \(1.5 \cdot IQR\) beyond the 25th and 75th percentiles. We can create a boxplot using the command boxplot.

# using pre-declared variable x

boxplot(x)

We can set the axis limits manually as well.

boxplot(x, # what to plot
        ylim = c(-4, 4), # set y limits
        pch = 19) # make dots solid

On the above plot, outliers for the dataset are shown as dots beyond the ends of the “whiskers”.


5.5 Skewness

Click to read about skewness

Skew is a measure of how much a dataset “leans” to the positive or negative directions (i.e., to the “left” or to the “right”). This is a function from the moments library.

skewness(x)
[1] -0.07158066

Generally, a value between \(-1\) and \(+1\) for skewness is “acceptable” and not considered overly skewed. Positive values indicate “right” skew and negative values indicate a “left” skew. If something is too skewed, it may violate assumptions of normality and thus need non-parametric tests rather than our standard parametric tests - something we will cover later!

The following is not required for skewness and is an example to show greater skew.

Let’s look at a skewed dataset. We are going to artificially create a skewed dataset from our x vector.

# create more positive values
x3 <- c(x,
        x[which(x > 0)]*2,
        x[which(x > 0)]*4,
        x[which(x > 0)]*8)

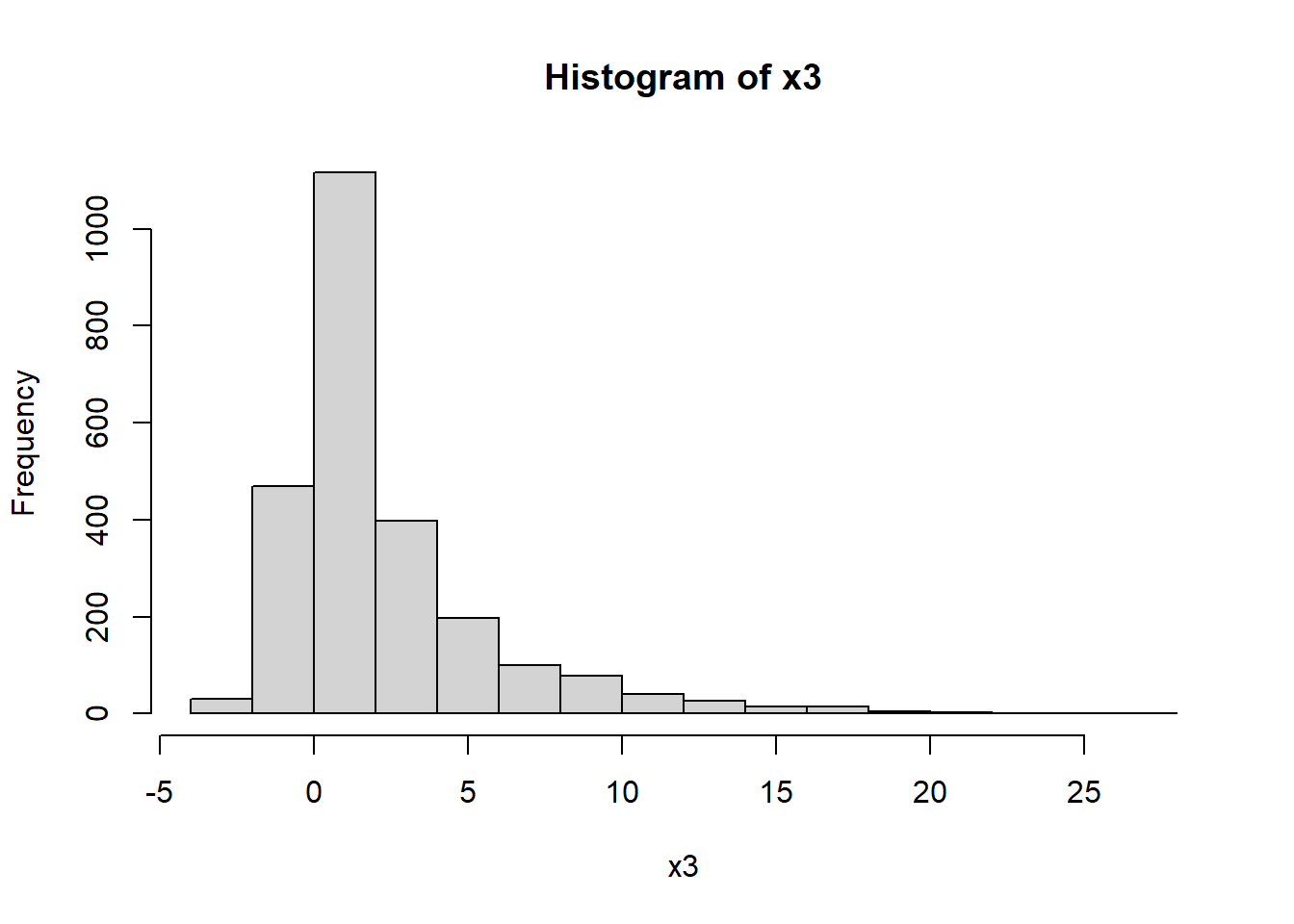

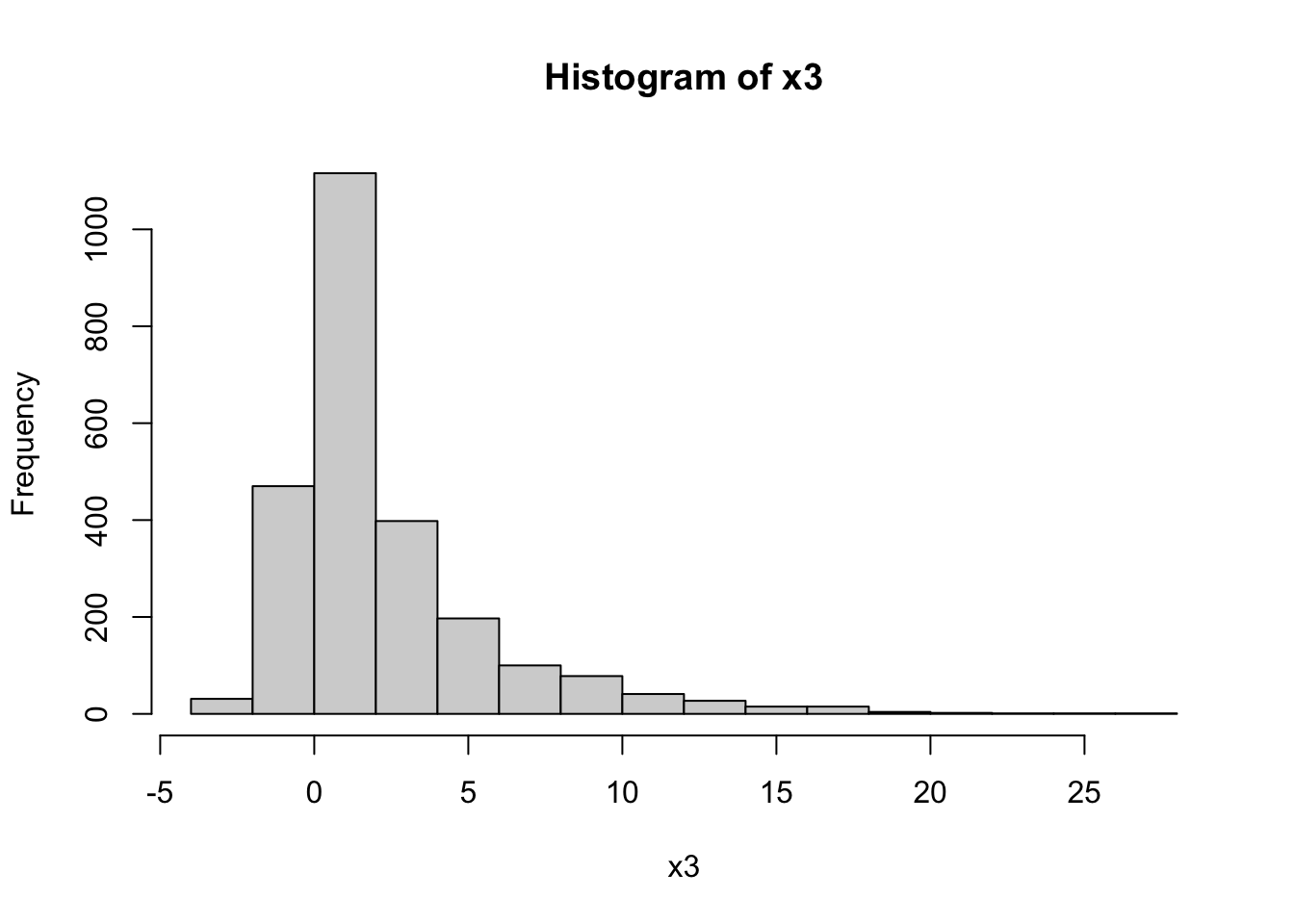

hist(x3)

skewness(x3) |>
  round(2)
[1] 2.18

As we can see, the above is a heavily skewed dataset with a positive (“right”) skew.


5.6 Kurtosis

Click to read about kurtosis

Kurtosis refers to how sharp or shallow the peak of the distribution is (platykurtic vs. leptokurtic). Remember - platykyrtic are plateaukurtic, wide and broad like a plateau, and leptokurtic distributions are sharp. Intermediate distributions that are roughly normal are mesokurtic.

Much like skewness, kurtosis values of \(> 2\) and \(< -2\) are generally considered extreme, and thus not mesokurtic. This threshold can vary a bit based on source, but for this class, we will use a threshold of \(\pm 2\) for both skewness and kurtosis.

Let’s see the kurtosis of x. Note that when doing the equation, a normal distribution actually has a kurtosis of \(3\); thus, we are doing kurtosis \(-3\) to “zero” the distribution and make it comparable to skewness.

Note: kurtosis is a function from the moments library.

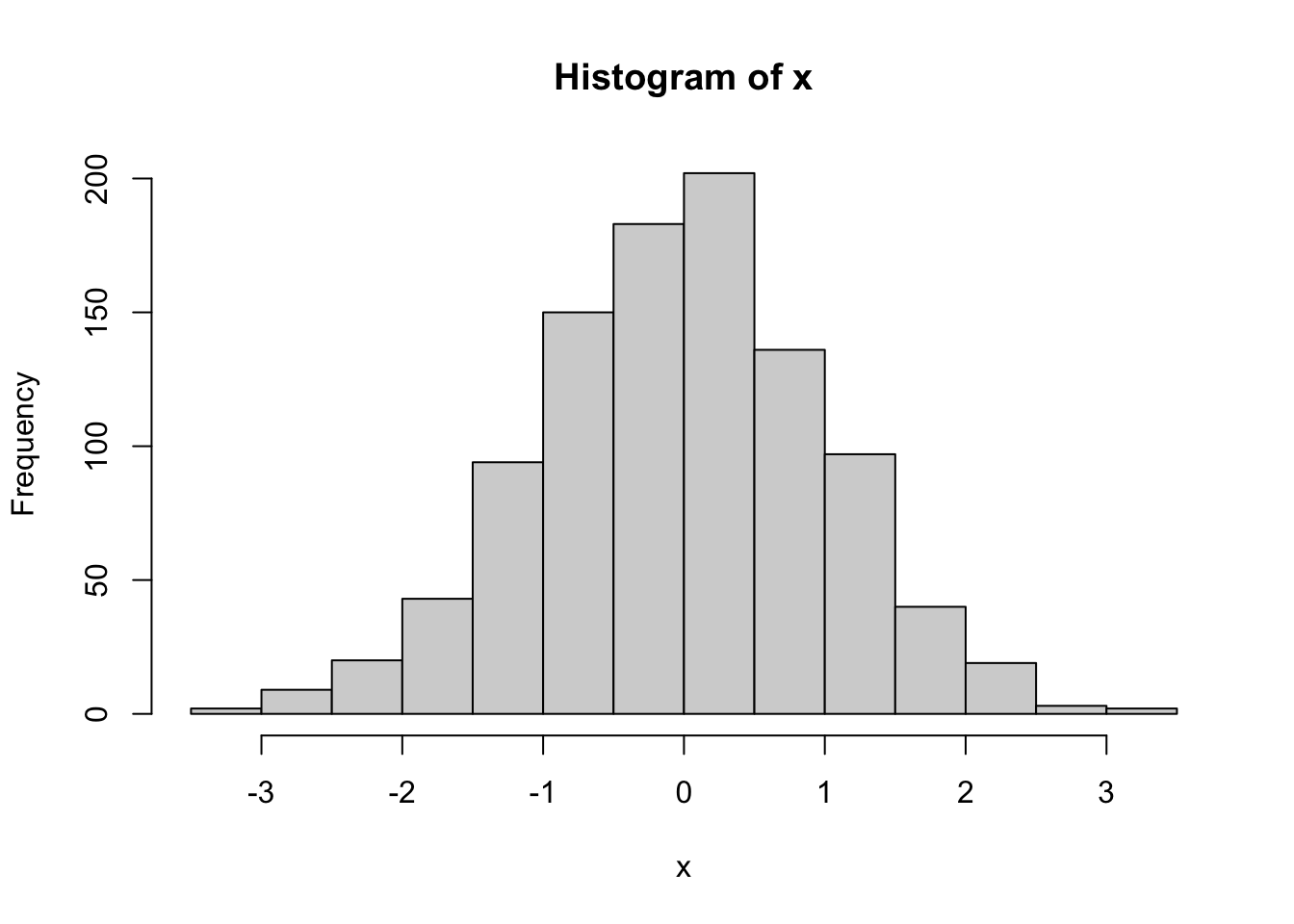

hist(x)

# zeroed
# put whole thing to be rounded in brackets
(kurtosis(x)-3) |> round(2)
[1] 0.05

Note when rounding a calculation, the calculation must be in brackets or it will only round the last value.

As expected, out values drawn from a normal distribution are mesokurtic.

The following is not required for calculating kurtosis, and this is an example to show something more leptokurtic.

Click here to see code for calculating on a more leptokurtic example

Let’s compare these to a more leptokurtic distribution:

xk <- x^3

kurtosis(xk)-3
[1] 29.12246

What does this dataset look like?

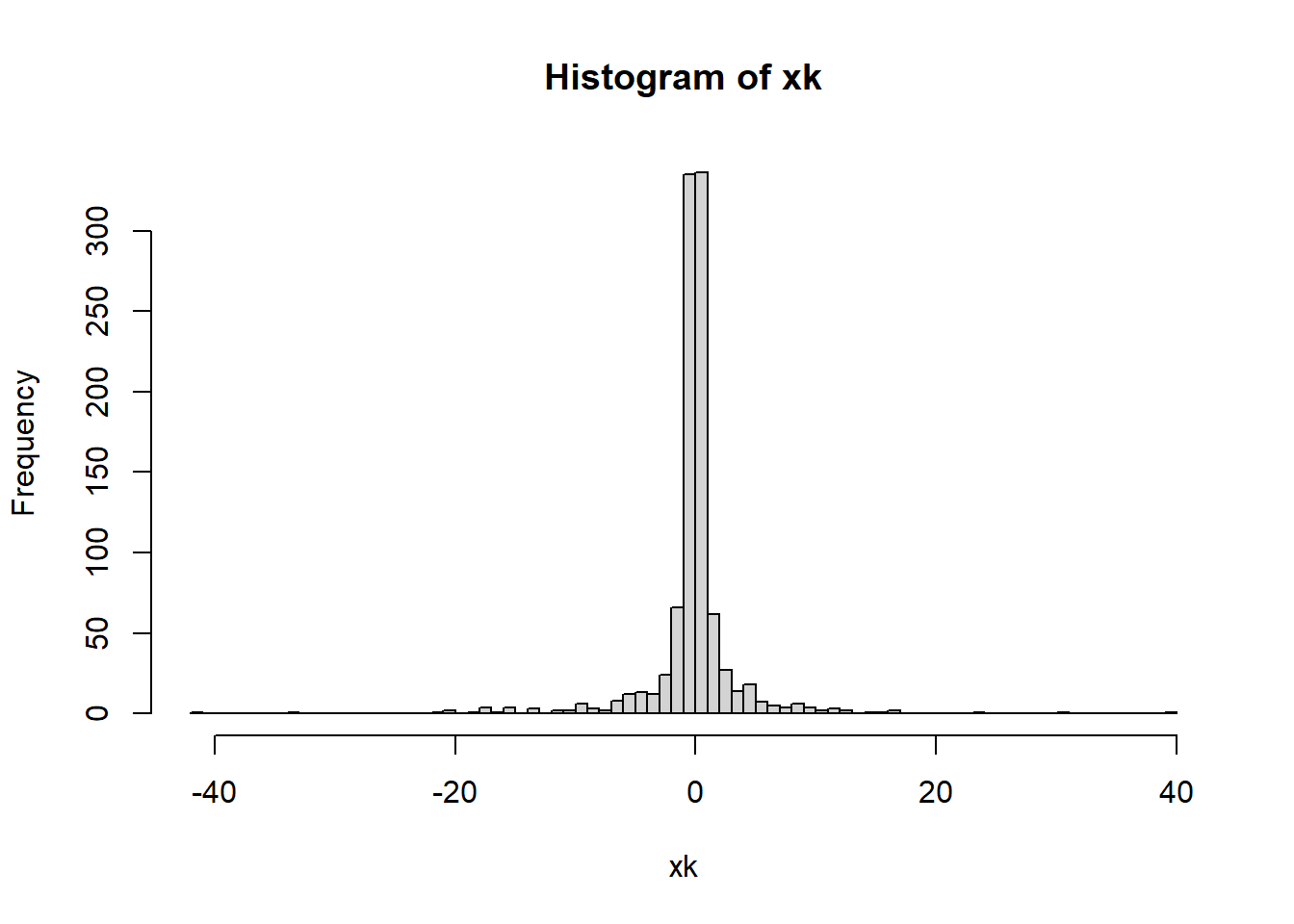

hist(xk,breaks = 100)

As we can see, this is a very leptokurtic distribution.


5.7 Cumulative frequency plot

A cumulative frequency plot shows the overall spread of the data as a cumulative line over the entire dataset. This is another way to see the spread of the data and is often complementary to a histogram.

Click to see how to make a cumulative frequency plot if data are a numeric vector

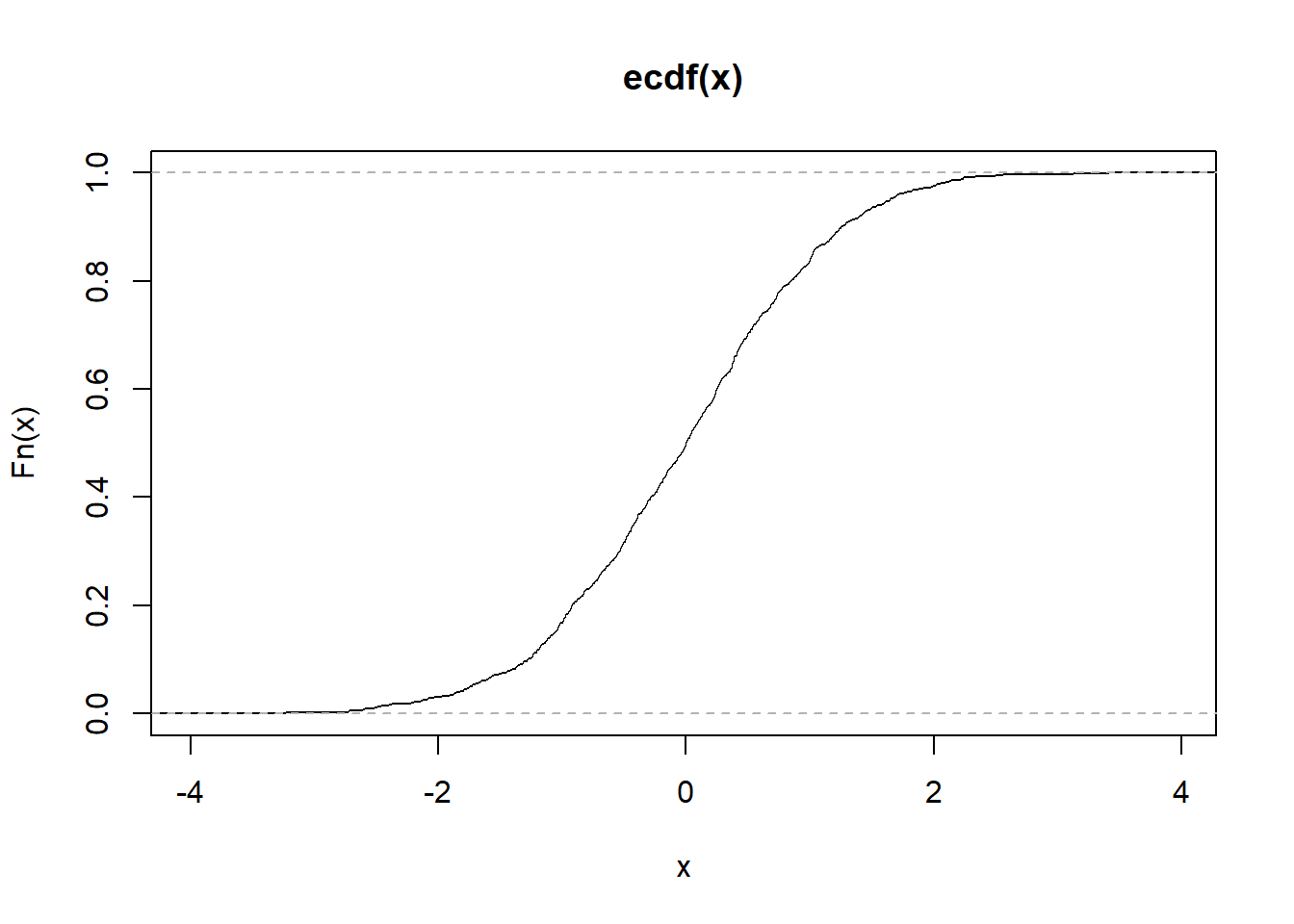

The use of the Empirical Cumulative Distribution Function ecdf can turn a variable into what is needed to create a cumulative frequency plot.

plot(ecdf(x)) #Creating a cumulative frequency plot

plot(ecdf(x),
     xlab = "Data Values", #Labeling the x-axis
     ylab = "Cumulative Probability", #Labeling the y-axis
     main = "ECDF of X") #Main title for the graph

Click to see how to make a cumulative frequency plot if data are in count format

If you have a list of frequencies (say, for river discharge over several years), you only need to do the cumsum function. For example:

y <- c(1 ,2 ,4, 8, 16, 8, 4, 2, 1)

sum_y <- cumsum(y)

print(y)
[1]  1  2  4  8 16  8  4  2  1
print(sum_y)
[1]  1  3  7 15 31 39 43 45 46

Now we can see we have out cumulative sums. Let’s plot these. NOTE that this method will not have the x variables match the dataset you started with, it will only plot the curve based on the number of values given.

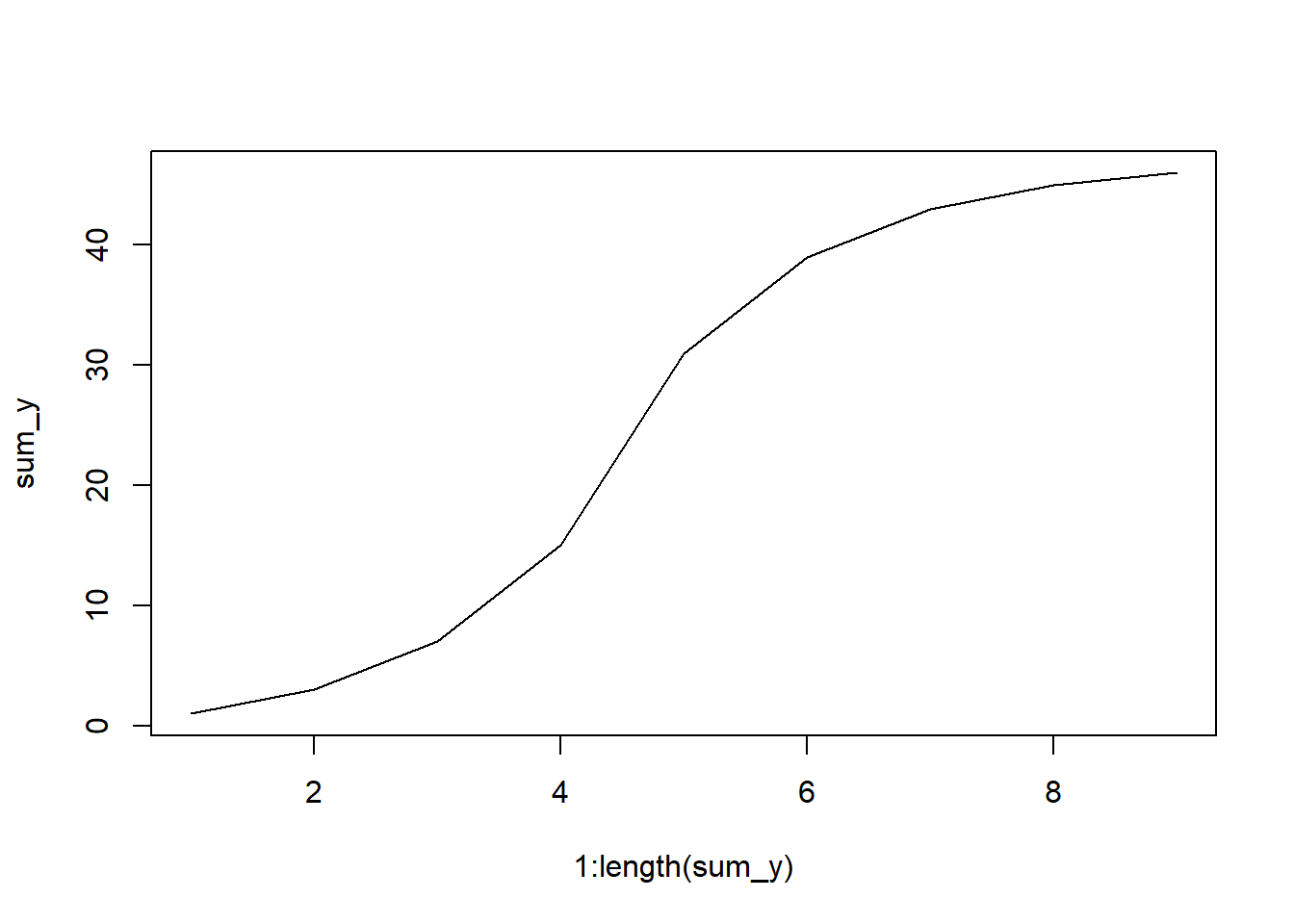

plot(x = 1:length(sum_y), # get length of sum_y, make x index
     y = sum_y, # plot cumulative sums
     type = "l") # make a line plot


5.8 Homework: Visualizing data


Directions:

Please complete all computer portions in an rmarkdown document knitted as an html. Upload any “by hand” calculations as images in the HTML or separately on Canvas.

Remember: you will need to load the tidyverse and moments libraries!


5.8.1 Problem 1

The Research Institute Nature and Forest in Brussels, Belgium, conducted a survey of fish from the southern North Sea to help with the identification of fish from seabird diets (Verstraete et al. 2020). We will be looking at the lengths one specific taxon - the Atlantic Herring Clupea harengus.

Copy and run the code below to load in your data. Use the object clupea.lengths for this problem.

# download fish data
fishes <- read_csv("https://zenodo.org/records/4066594/files/reference_data.csv")

# isolate Clupea harengus
clupea <- fishes |>
  filter(scientific_name == "Clupea harengus")

# get vector of lengths
clupea.lengths <- clupea$fish_length_mm |>
  # remove missing data
  na.omit()
  1. Create a histogram of these data.
  2. Create a cumulative frequency plot of these data.
  3. Calculate the kurtosis of these data, and make a conclusion about the kurtosis of the dataset.
  4. Calculate the skewness of these data, and make a conclusion about the skewness of the dataset.
  5. Create a boxplot of these data. Are there any outliers in this dataset?
  6. Compare the methods used to examine the data above. How do these methods help you understand the data? Do the numerical results from parts like skewness and kurtosis make sense with your plots?

5.8.2 Problem 2

The Fremont Bridge in Seattle is one of the only bridges that connects the north and south sides of the city, crossing the Fremont Cut - a navigational canal between the Puget Sound and Lake Union & Lake Washington. As such, it is an important transportation corridor. We will be looking at counts of bicyclists, taken hourly for the east (predominately northbound) side over a seven year period (Weber 2019). This dataset has 56,904 records - thus, this is not something that would be easily done without the use of a program like R!

bicycles <- read_csv("https://zenodo.org/records/2648564/files/Fremont_Bridge_Hourly_Bicycle_Counts_by_Month_October_2012_to_present.csv")

bike.count <- bicycles$`Fremont Bridge East Sidewalk` |>
  na.omit()
  1. Create a histogram of these data.
  2. Create a cumulative frequency plot of these data.
  3. Calculate the kurtosis of these data, and make a conclusion about the kurtosis of the dataset.
  4. Calculate the skewness of these data, and make a conclusion about the skewness of the dataset.
  5. Create a boxplot of these data. Are there any outliers in this dataset?
  6. Compare the methods used to examine the data above. How do these methods help you understand the data? Do the numerical results from parts like skewness and kurtosis make sense with your plots?

5.8.3 Problem 3

Take the object bike.count from the previous problem and perform a log transformation of the data. To do this, we will take the natural log of the dataset plus one. We must add 1 to every value in the dataset, because the natural log of 0 is negative infinity (\(-\infty\)); adding one makes every value in the dataset quantifiable as the minimum value for any count data will become 0.

Perform the following action on your computer, replacing x with your bike.data object. Name your object log.bikes instead of log.x.

log.x <- log(x + 1)

After performing the log transformation, complete the following.

  1. Create a histogram of these data.
  2. Create a cumulative frequency plot of these data.
  3. Calculate the kurtosis of these data, and make a conclusion about the kurtosis of the dataset.
  4. Calculate the skewness of these data, and make a conclusion about the skewness of the dataset.
  5. Create a boxplot of these data. Are there any outliers in this dataset?
  6. How did the log transformation change these data?

5.8.4 Problem 4

Is there pseudoreplication in the bicycle dataset? Why or why not?

5.8.5 Problem 5

This last problem will require you to practice Histograms on frequency counts and Cumulative frequency plot on count data. In this dataset, you will be looking at the counts of the response variable for each level of the treatment variable.

treatment <- 1:10
response <- c(1,11,21,28,33,39,32,21,17,2)

random_data <- cbind(treatment, response) |>
  as.data.frame()
  1. Create a histogram of these data.
  2. Create a cumulative frequency plot of these data.
  3. Calculate the kurtosis of these data, and make a conclusion about the kurtosis.
  4. Calculate the skewness of these data, and make a conclusion about the skewness.
  5. Create a boxplot of these data. Are there any outliers?

5.9 Acknowledgments

Thanks to Hernan Vargas & Riley Grieser for help in formatting this page. Additional comments provided by BIOL 305 classes.
